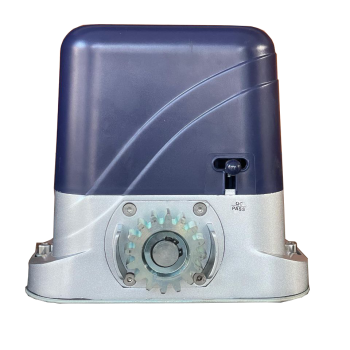

>Stylish appearance design and built-in control panel integrated inside the mechanism,
no external controller or receiver needed.
>Built in limit switch allowing the motor to switch off once the cycle is finished.
>Built in manual override with 2 supplied unique override keys in case of emergency or power failure.
>The motor is constructed of all metal gears make it durable and long lasting.
>Pedestrian mode.
>Resistance sensitivity and auto-closing delay time adjustable.
>Stop Reverse in case of obstruction during gate opening and closing.
>Easy installation, firm and solid structure, stable and reliable driving, permanently lubricated,
maintaining-free.
>Single-phase self-lock, anti-pushing, anti-lifting safe and reliable.
PARAMETERS
Working Temperature of Motor: -25°C~+55°C.
Working Humidity: ≤ 85%
Power Supply: 220VAC
Rated Power: 380W
Open(close) Speed: v=12m/min
Rated Speed: 1400RPM
Maximum Load : 800KG
Remote Control Distance: ≤50meter
2 YEAR
WARRANTY

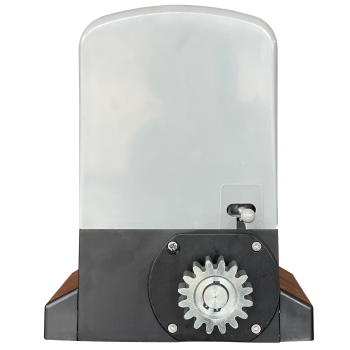

>Stylish appearance design and built-in control panel integrated inside the mechanism, no external controller
or receiver needed.
>Built in limit switch allowing the motor to switch off once the cycle is finished.
>Built in manual override with 2 supplied unique override keys in case of emergency or power failure.
>The motor is constructed of all metal gears make it durable and long lasting.
>Pedestrian mode.
>Resistance sensitivity and auto-closing delay time adjustable.
>Stop Reverse in case of obstruction during gate opening and closing.
>Easy installation, firm and solid structure, stable and reliable driving, permanently lubricated, maintaining-free.
>Single-phase self-lock, anti-pushing, anti-lifting safe and reliable.
PARAMETERS
Working Temperature of Motor: -25°C~+55°C.
Working Humidity: ≤ 85%
Power Supply: 220VAC
Rated Power: 370W
Open(close) Speed: v=12m/min
Rated Speed: 1400RPM
Maximum Load : 1000KG
Remote Control Distance: ≤50meter
2 YEAR
WARRANTY

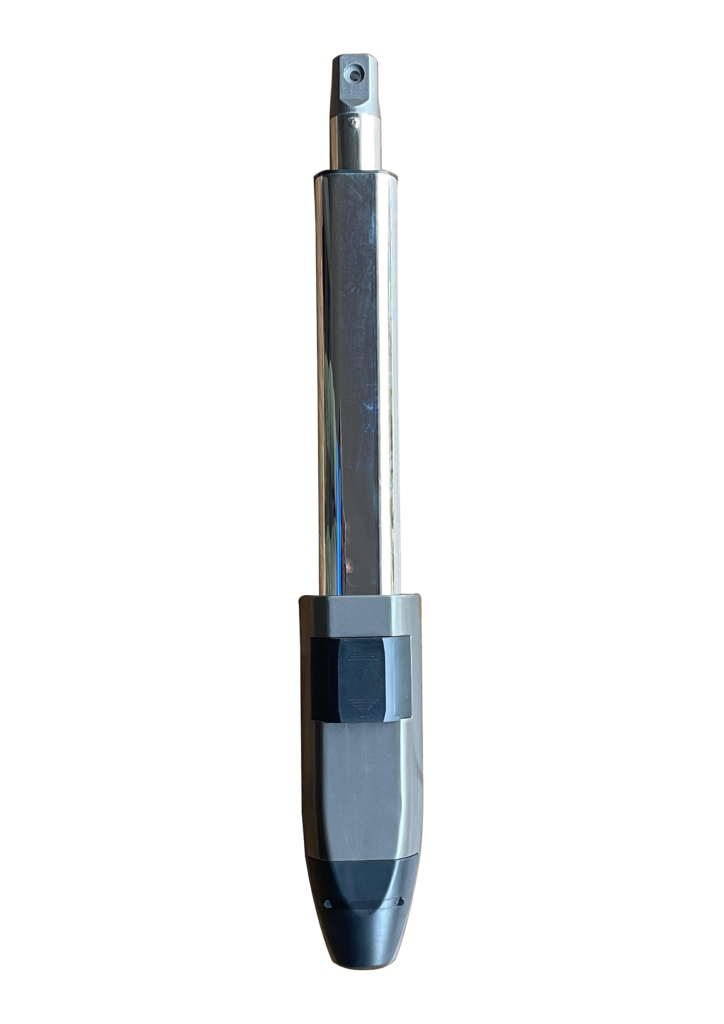

> Open and close single or both the gate by remote control With Warning light for gate operation notification
> Can be paired with upto 100 remote to operate the swing gate operator Safely 24volts DC motors eliminating
the dangers of electic shock hazar
> Overload sensor provide instant stop upon contact with obstacle.
> Soft start and stop
> Weather resistant housing (IP 55 Protection)
> can operate with remote control, push button, gsm receiver ofc
PARAMETERS
Power supply to controller: 220VAC 50Hz
Motor power: 24VDC 40W x 2
Rotational speed: 1450r/min
Max single leaf length:5M
Max single leaf weight: 400 KG
Running speed: 10-16M/min
Protection class: IP55
2 YEAR
WARRANTY

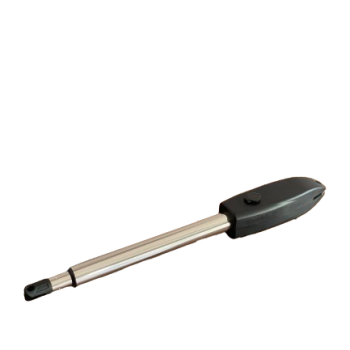

> In case of power failure: Use the manual override key to release the clutch to open
or close the gate manually.
> When Gate is Obstructed: Gate stops..
> Optional. The Gate Opener Controller can be connected to a solar system, a flash light warning,
a photocell, back up battery keypad and other access control devices.
> Speed Control: Gate opening and closing speed can be adjusted.
> Gentle Start: The Gate Opener is equipped with a soft start function.
> Auto Close. The Gate Opener System is equipped with Auto close function with
adjustable closing time delay
> Single or Dual Gate: Either Single or Dual Swing Gate can be opened.
> Multiple Remote Transmitters: The Controller can easily accommodate several unique
extra remotes to control the swing gate opener.
> The Gate Opener can be configured to allow smooth noiseless operation
PARAMETERS
Motor voltage :24VDC 80W
Input power: 220V AC
Rotational speed : 300 RPM
Max single leaf length : 3.5 meter
Max single leaf weight: 350 KG
Protection class : IP55
2 YEAR
WARRANTY
> In case of power failure: Use the manual override key to release the clutch to open
or close the gate manually
> When Gate is Obstructed: Gate stops.
> Optional. The Gate Opener Controller can be connected to a solar system, a flash light warning,
a photocell, back up battery, keypad and other access control devices.
> Speed Control: Gate opening and closing speed can be adjusted.
> Gentle Start: The Gate Opener is equipped with a soft start function.
> Auto Close: The Gate Opener System is equipped with Auto close function with
adjustable closing time delay
> Single or Dual Gate: Either Single or Dual Swing Gate can be opened.
> Multiple Remote Transmitters: The Controller can easily accommodate several unique
extra remotes to control the swing gate opener
> The Gate Opener can be configured to allow smooth noiseless operation
PARAMETERS
Motor voltage: 24VDC 60 w
Rotational speed: 300 RPM
Input power: 220VAC
Max single-leaf length: 5meters
Max single-leaf weight: 350KG
Protection Class: IP55
Max gate open angle: 110 degree
2 YEAR
WARRANTY
> In case of power failure: Use the manual override key to release the clutch to open or close the gate manually
> When Gate is Obstructed: Gate stops.
> Optional. The Gate Opener Controller can be connected to a solar system,
a flash light warning, a photocell, back up battery, keypad and other access control devices.
> Speed Control: Gate opening and closing speed can be adjusted.
> Gentle Start: The Gate Opener is equipped with a soft start function.
> Auto Close: The Gate Opener System is equipped with Auto close function with adjustable closing time delay
> Single or Dual Gate: Either Single or Dual Swing Gate can be opened.
> Multiple Remote Transmitters: The Controller can easily accommodate several unique extra remotes
to control the swing gate opener
> The Gate Opener can be configured to allow smooth noiseless operation
PARAMETERS
Motor voltage: 24VDC 60 w
Rotational speed: 300 RPM
Input power: 220VAC
Max single-leaf length: 5meters
Max single-leaf weight: 350KG
Protection Class: IP55
Max gate open angle: 110 degree
2 YEAR
WARRANTY
> In case of power failure: Use the manual override key to release the clutch to open or close the gate manually
> When Gate is Obstructed: Gate stops.
> Optional. The Gate Opener Controller can be connected to a solar system,
a flash light warning, a photocell, back up battery, keypad and other access control devices.
> Speed Control: Gate opening and closing speed can be adjusted.
> Gentle Start: The Gate Opener is equipped with a soft start function.
> Auto Close: The Gate Opener System is equipped with Auto close function with adjustable closing time delay
> Single or Dual Gate: Either Single or Dual Swing Gate can be opened.
> Multiple Remote Transmitters: The Controller can easily accommodate several unique extra remotes
to control the swing gate opener
> The Gate Opener can be configured to allow smooth noiseless operation
PARAMETERS
Motor voltage: 24VDC 60 w
Rotational speed: 300 RPM
Input power: 220VAC
Max single-leaf length: 5meters
Max single-leaf weight: 350KG
Protection Class: IP55
Max gate open angle: 110 degree
